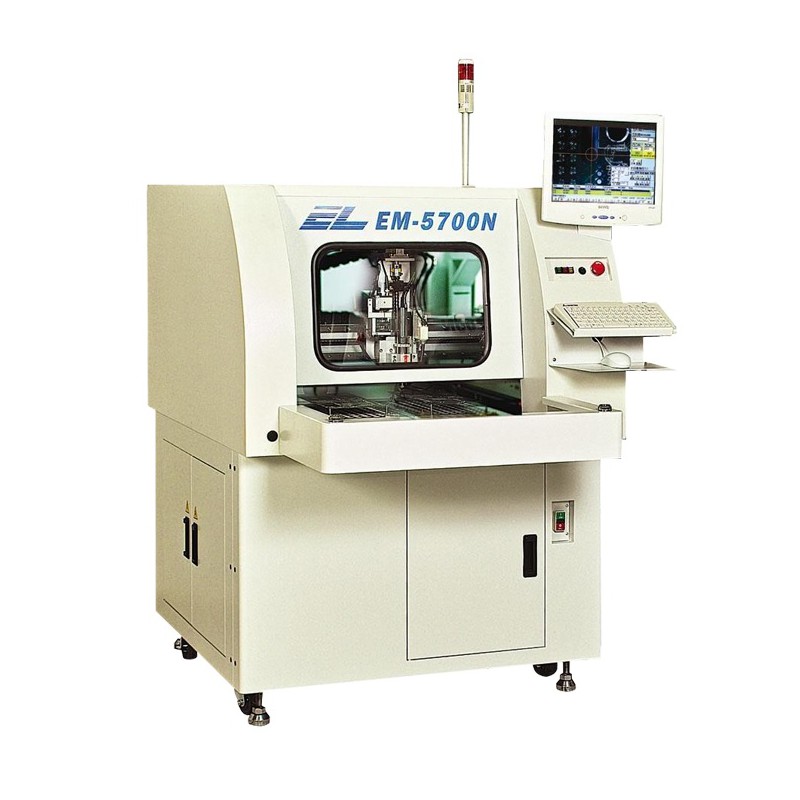

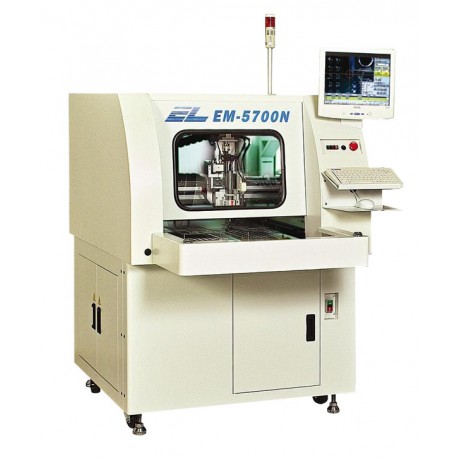

Separador PCB In-line Ver maior

Separador PCB In-line

Produto novo

Separador PCB In-line

Mais detalhes

Mais informações

Specification
01. Unilateral operating distance : 300 x 350 mm (Double chuck Left & Right)
02. X、Y cutting speed : 0~100mm/s
03. Repeat precision of the machine set : ± 0.01mm
04. Cut the precision : ± 0.1mm
05. X、Y、Z、A、B driving method:AC servomotor
06. Operation interface : PC WINDOW
07. Conveyor height : 900 ±50mm
08. Static Eliminator
09. Rotational speed of the spindle: MAX60000rpm
10. Air pressure supply: 4.5kg/cm²above
11. Power consumption: 3KVA
12. Host voltage : 220V 1φ 50/60Hz
13. Host size: D 1470 * W 2000 * H 1620 (mm)
14. Dust collection machine : 5HP
15. Dust collection machine voltage : 220V/380V 3φ 50/60Hz
16. Weight of the host : 1000kg (5HP Dust collection machine: 300kg)
